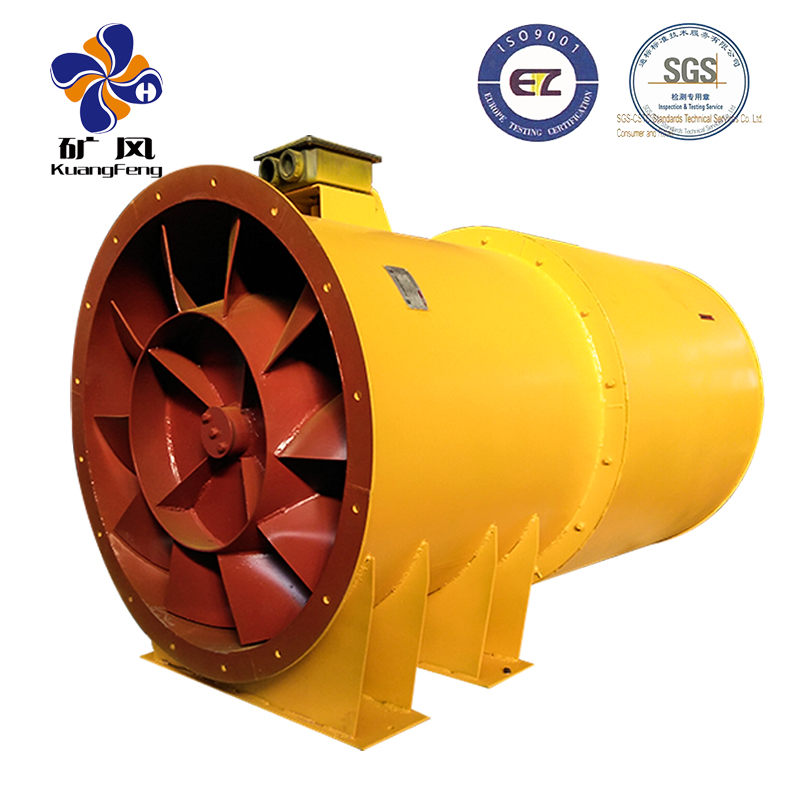

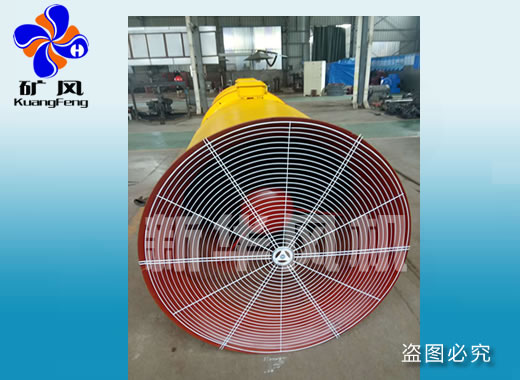

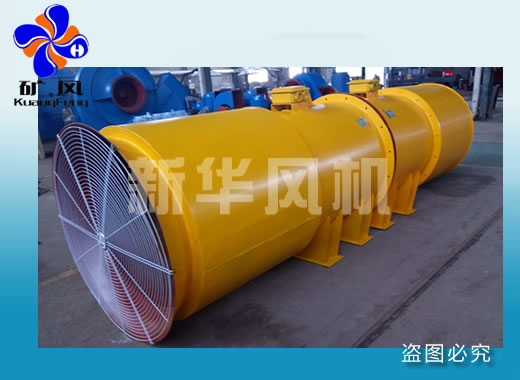

SDF系列對旋隧道軸流局部通風機，是由淄博新華風機有限公司在總結國內現有對旋式軸流局扇結構與技術性能的基礎上進行研制、并生產新一代用途廣泛的新型節能局部通風機。該產品具有結構合理、規格齊全、效率高、節能效果明顯、噪音低、送風距離遠等特點。根據不同的通風阻力要求，即可整機使用又可分級使用，從而減少通風電耗、節約能源。巷道長度在2000m以內可不移動風機正常送風，減少了工人的勞動強度，節約通風時間，是煤礦井下局部通風的理想設備。同時，它亦可用于冶金、有色、黃金、化工、造船和陶瓷工業等高壓通風場合。其結構特征為礦用隔爆型、對旋、消聲、軸流式。

主要用途及適用范圍

本產品主要用于井下作壓入式局部通風機，適用于采掘工作面用各種硐室的局部通風場合。同時，也適用于其它礦山的局部通風場合及各種隧道通風。

SDF系列對旋隧道軸流局部通風機技術性能參數表

機號	轉速r/min	風量m³/min	全壓Pa	電動機型號	配用功率kW	額定電壓(V)	單臺電機額定電流(A)
№4.0	2900	136～89	256～2050	YBF90L-2	2×2.2	420	4.85/2.79
		150～100	325～2500	YBF100L-2	2×3	420	6.4/3.7
		165～109	375～3040	YBF112M-2	2×4	420	8.1/4.7
№5.0	2900	217～145	275～2060	YBF112M-2	2×4	420	8.1/4.7
		240～161	325～2540	YBF132S1-2	2×5.5	420	11.1/6.4/3.7
		266～178	400～3155	YBF132S2-2	2×7.5	420	14.8/8.66/4.97
№5.6	2900	286～188	275～2850	YBF132S2-2	2×7.5	420	14.8/8.66/4.97
		324～215	375～3690	YBF160M1-2	2×11	420	21.6/12.6/7.2
		358～238	440～4560	YBF160M2-2	2×15	420	28.8/17.0/9.6
№6.3	2900	410～237	400～4775	YBF160M2-2	2×15	420	28.8/17.0/9.6
		442～256	460～5475	YBF160L-2	2×18.5	420	35.5/20.5/11.8
		468～274	525～6125	YBF180M-2	2×22	420	41.0/24.4/13.67
		518～318	640～7310	YBF200L1-2	2×30	420	56.9/32.9/18.5
№7.1	2900	608～352	523～6228	YBF200L1-2	2×30	420	56.9/32.9/18.5
		652～377	602～7163	YBF200L2-2	2×37	420	67.9/40.3/22.6
		696～402	686～8161	YBF225M-2	2×45	420	82.1/48.4/27.4
№8.0	2900	817～473	605～7200	YBF225M-2	2×45	420	82.1/48.4/27.4
		874～506	692～8230	YBF250M-2	2×55	420	102.6/59.3/34.3
		970～560	850～9950	YBF2-280S-2	2×75	420	134/77/44.2
№9.0	1450	831～480	394～4710	YBF200-4	2×30	420	56.8/32.8/19.0
		890～520	450～5120	YBF2-225S-4	2×37	420	70.0/40.0/23.2
		950～550	520～6170	YBF2-225M-4	2×45	420	85.0/50.0/29.0
№10.0	1450	1171～677	514～6131	YBF250M-4	2×55	420	102.7/59.2/34.3
		1300～750	630～7540	YBF2-280S-4	2×75	420	140/81.0/47.0
		1380～800	710～8520	YBF2-280M-4	2×90	420	167/96/55.5
№11.2	1450	1650～950	650～7690	YBF2-280M-4	2×90	420	167/96/55.5
		1770～1020	750～8790	YBF2-315S-4	2×110	420	201/116/67.2
		1880～1090	850～9930	YBF2-315M-4	2×132	420	240/139/80.5

The next book in that

SDF series Push-rotating axial local fan, is from Zibo Xinhua fan limited review of domestic existing contra-rotating axial flow fan structure and technical performance on the basis of the development, and the production of a new generation of wide use of new energy-saving ventilating machine local. The product has the advantages of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise, air distance and so on. According to the different ventilation resistance requirements, can the use can be graded using, thereby reducing ventilation power consumption, energy saving. Tunnel length within2000mcan not move the fan normal air supply, reduce the labor intensity of the workers, saving ventilation time, is ideal equipment for coal mine local ventilation in mine. At the same time, it can also be used in metallurgy, nonferrous metals, gold, chemical industry, shipbuilding and ceramic industry and other high pressure ventilating occasion. The structure characteristics of mining flameproof, counter-rotating, muffler, axial flow.

The main purpose and scope

The products are mainly used in underground press type ventilation machine, suitable for mining work face with a variety of chamber of local ventilation. At the same time, also applies to other mine local ventilation occasion and all kinds of tunnel ventilation.

SDF series Push-rotating axial flow ventilating machine local technical performance parameters table

Machine number	SPEED r/min	Air volume m³/min	Total pressure Pa	MODEL	Matched power kW	Rated voltage (V)	The single motor Rated current (A)
№4.0	2900	136～89	256～2050	YBF90L-2	2×2.2	420	4.85/2.79
		150～100	325～2500	YBF100L-2	2×3	420	6.4/3.7
		165～109	375～3040	YBF112M-2	2×4	420	8.1/4.7
№5.0	2900	217～145	275～2060	YBF112M-2	2×4	420	8.1/4.7
		240～161	325～2540	YBF132S1-2	2×5.5	420	11.1/6.4/3.7
		266～178	400～3155	YBF132S2-2	2×7.5	420	14.8/8.66/4.97
№5.6	2900	286～188	275～2850	YBF132S2-2	2×7.5	420	14.8/8.66/4.97
		324～215	375～3690	YBF160M1-2	2×11	420	21.6/12.6/7.2
		358～238	440～4560	YBF160M2-2	2×15	420	28.8/17.0/9.6
№6.3	2900	410～237	400～4775	YBF160M2-2	2×15	420	28.8/17.0/9.6
		442～256	460～5475	YBF160L-2	2×18.5	420	35.5/20.5/11.8
		468～274	525～6125	YBF180M-2	2×22	420	41.0/24.4/13.67
		518～318	640～7310	YBF200L1-2	2×30	420	56.9/32.9/18.5
№7.1	2900	608～352	523～6228	YBF200L1-2	2×30	420	56.9/32.9/18.5
		652～377	602～7163	YBF200L2-2	2×37	420	67.9/40.3/22.6
		696～402	686～8161	YBF225M-2	2×45	420	82.1/48.4/27.4
№8.0	2900	817～473	605～7200	YBF225M-2	2×45	420	82.1/48.4/27.4
		874～506	692～8230	YBF250M-2	2×55	420	102.6/59.3/34.3
		970～560	850～9950	YBF2-280S-2	2×75	420	134/77/44.2
№9.0	1450	831～480	394～4710	YBF200-4	2×30	420	56.8/32.8/19.0
		890～520	450～5120	YBF2-225S-4	2×37	420	70.0/40.0/23.2
		950～550	520～6170	YBF2-225M-4	2×45	420	85.0/50.0/29.0
№10.0	1450	1171～677	514～6131	YBF250M-4	2×55	420	102.7/59.2/34.3
		1300～750	630～7540	YBF2-280S-4	2×75	420	140/81.0/47.0
		1380～800	710～8520	YBF2-280M-4	2×90	420	167/96/55.5
№11.2	1450	1650～950	650～7690	YBF2-280M-4	2×90	420	167/96/55.5
		1770～1020	750～8790	YBF2-315S-4	2×110	420	201/116/67.2
		1880～1090	850～9930	YBF2-315M-4	2×132	420	240/139/80.5
